The Load Cell Weigthing Station of the B.R.A. s.r.l. it is an independent additional element that can integrate an existing filling line, guaranteeing production stability and, above all, performing a control function.

It consists of 3 main elements:

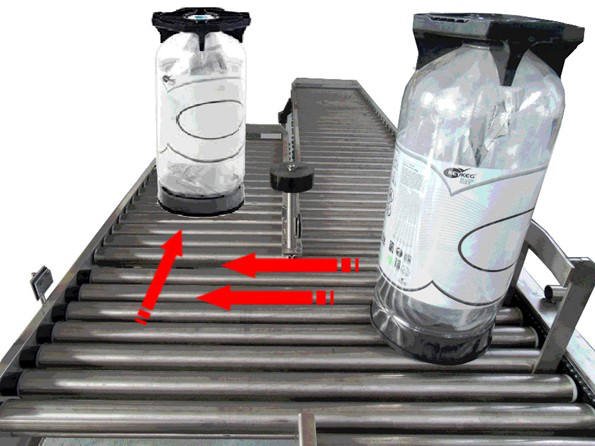

• the motorized rollers position the full keg above the load cell, after which it makes it continue along the line;

• the compression load cell identifies mass of the full keg;

• the reject system: the weight transmitter provides the data to the PLC: if the detected weight does not comply with the one set in the software parameters, the keg is automatically rejected and diverted to the waste buffer, otherwise it continues along the line.

Technical Features:

• Entire structureand control panel in electro-welded A304 stainless steel

• PLC TOUCH SCREEN UNISTREAM  that allows to easily view and set the work parameters; it is equipped with network connections that can be configured with the most common communication protocols (modbus, ethernet / IP, OPC UA) for interconnection to factory IT systems and / or automated integration with the logistics system or with other machines belonging to the production cycle (exchange of consents and / or data).

• Drive Rollers with a built-in 24 Vdc brushless electric motor, and single 1/2" Z=14 for transmission with tangential chain

• External electronic board that extends the basic functions of the Drive Roller

• Keg ejection pneumatic system

• Double outfeed roller conveyor

Taking for example a line for PET kegs, it processes up to 240-250 drums per hour (the hourly production is indicative and may vary according to the machine settings).

On request, it is possible to evaluate the insertion of the Weighting Station program in the PLC software of the existing line, if this has the characteristics suitable for modification.

If not already present, it is recommended to insert an automatism for the separation of the incoming kegs before the Weighting Station.
