Description

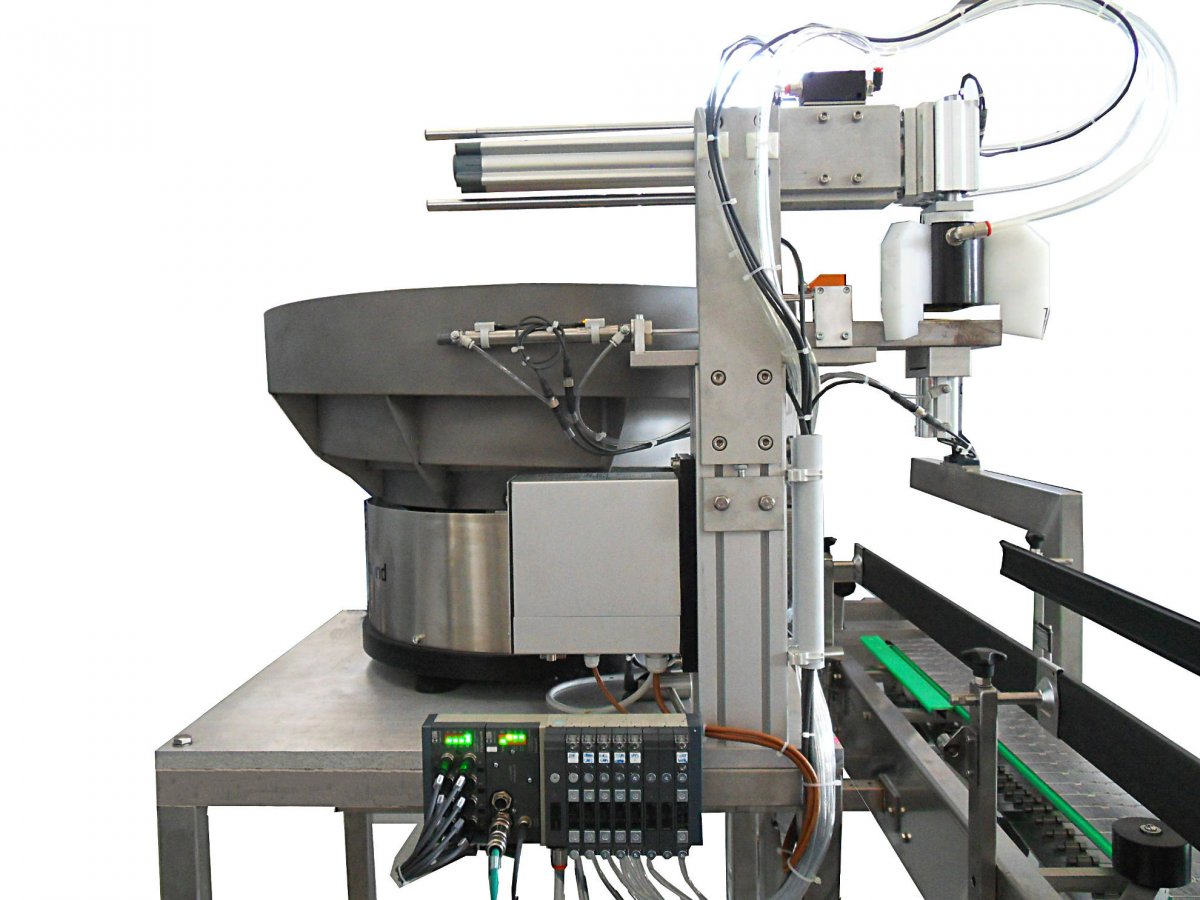

The Automatic Capper of the B.R.A. s.r.l. is an independent additional element that can integrate an existing filling line



It consists of 3 main elements:

  - Vibrating drive unit with stepped bowl

  - Controller CFV 6A

  - Cap Clamp



Technical Features:

 - Entire structure in electro-welded A304 stainless steel

 - Automatism for the separation of the incoming kegs

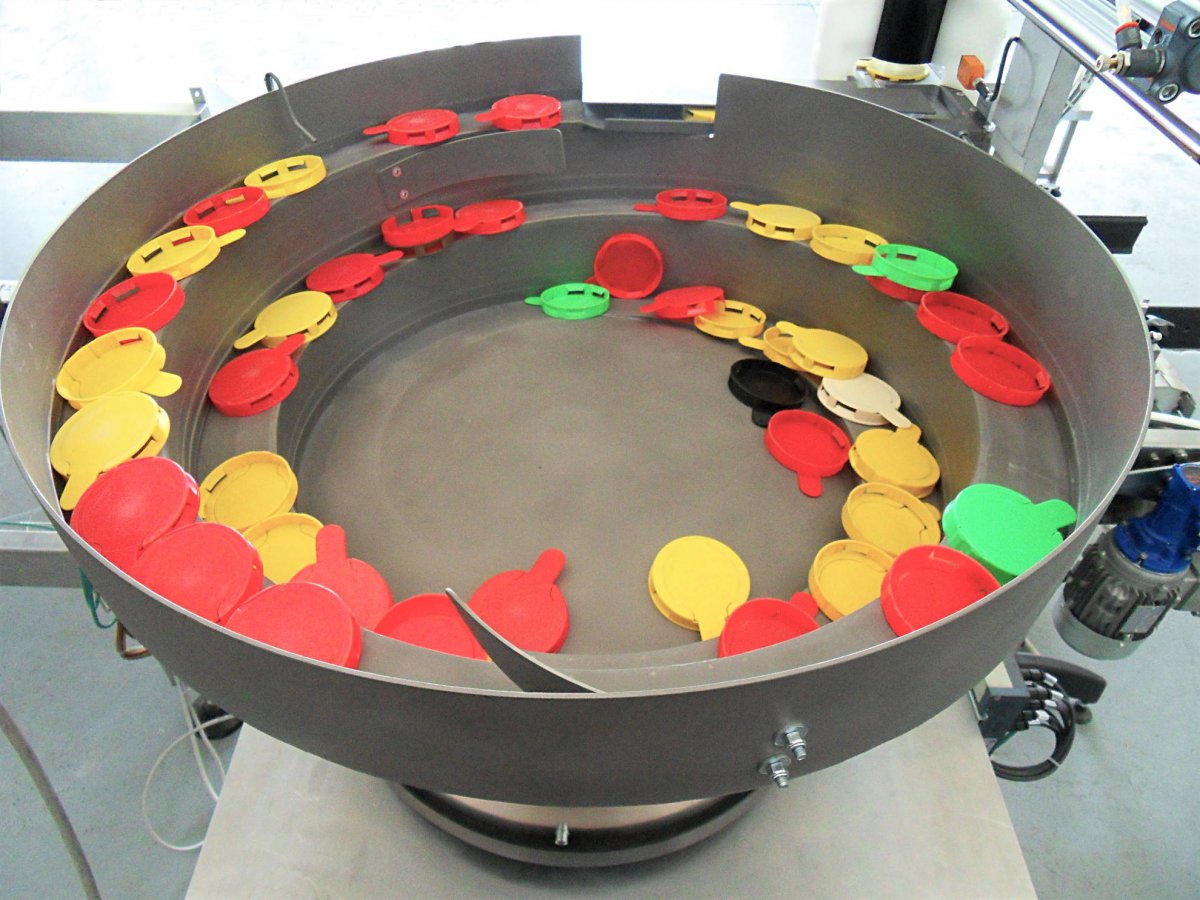

 - Stepped bowl: it contains and directs the capsules and orients them via the vibrating base

 - Vibrating drive unit: it generates the vibration necessary for feeding and orienting the capsules inside the bowl. Operated by an electromagnet and managed by the electronic controller, it is equipped with a sensor for monitoring and compensation of the vibration parameters.

 - Electronic controller for switching on / off the vibrating feeder: automatic adjustment and orientation system, feedback sensor that determines the optimal working frequency, setpoint via keyboard, Standard Conformity CE and UL/CSA

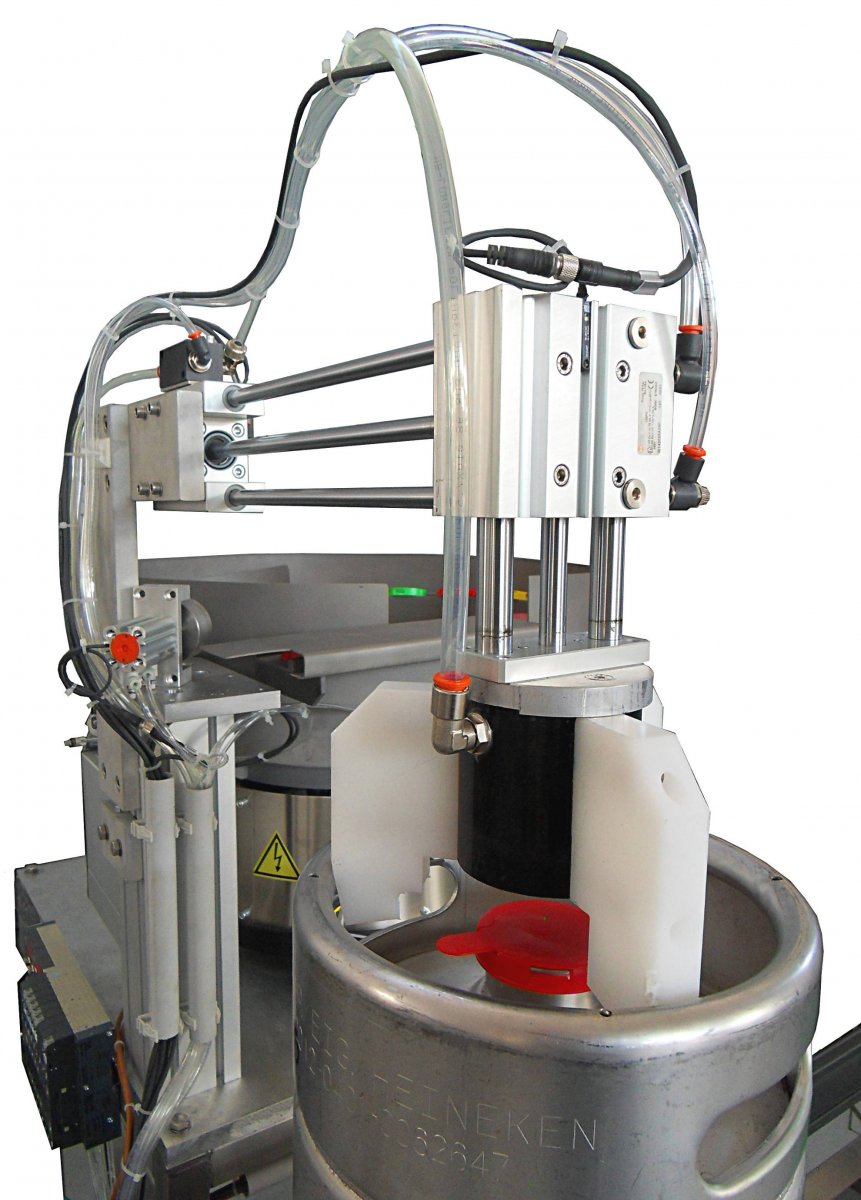

 - Clamp
